JY-XF Nonwoven Round makeup cotton machineProduct
Home > Products

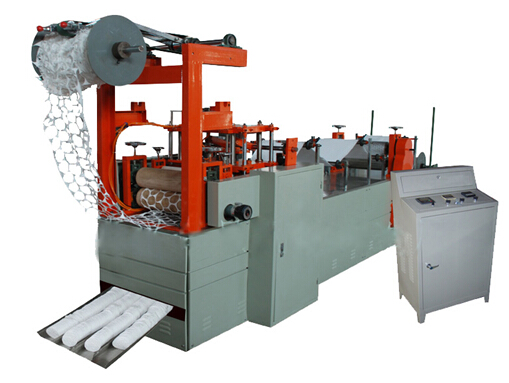

JY-XF Nonwoven Round makeup cotton machine
Detailed：
Charateristics:

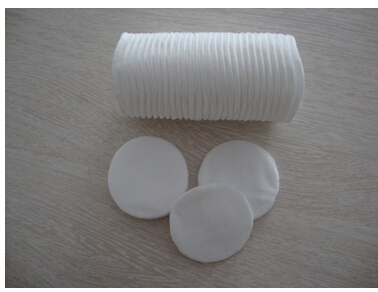

1.Working principle: raw material transferring, make embossing on each round cotton pad, punching the raw materials to be round cotton, counting and arraying to output the products.
3. The device is made of homemade 45# steel . Using rust-preventing paint to brush the surface of the machine. The table-boards of the device all use rust-preventing paint. The machine’s frame have good jointing and the size is precise.
4. The device uses imported transducer to adjust the producig speed. The electronic parts have reasonable wireslaying and easily operation.
5. The device has high producin speed and stableness .
6.The device uese mechanical punching, has 4 sets round punching knives and uses the most reasonable arraying way to save raw materials into the minimum level. And reduce the cost of producing products.
Device model | JY-XY |
Producing speed | 500片/分鐘 |
Volts | 380V |
Frequency | 50Hz |
Total power | 5.5kw |
Dimension | 5000mm×1000mm×2000mm (L*W*H) |
Weight | 2300kg |
