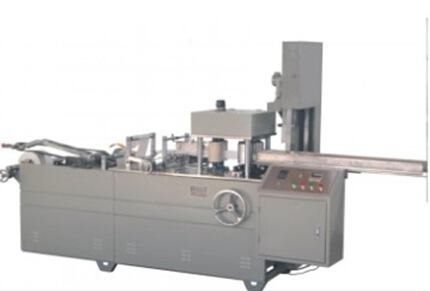

JY-Z（200、400、500、600） full- automatic rub nonwoven folding machine
Detailed：
Charateristics:
1. Working principle: synchronous transmission, automatic folding, high lift counting to cut output products.
2. The device has the wide belt synchronous conveying device and two control tension device, to ensure that the folding of the size precision of the finished product; with positive and negative cloth guide conversion device, convenient production.
3. The device uses the electromagnetic valve pneumatic counting device to count.
4. Transmission part uses double piece to match up with bevel gear transmission.
5. The device has imported frequency converter speed control, electrical wiring standard parts, convenient operation.
6. According to customer demand ,the device can be equipped with embossing and printing device.
Device model | JY-Z（100-900） |
Produce speed | 600pcs/min |
Volts | 380V |
Frequency | 50Hz |
Total power | 3.5-6.5kw |
Dimension | 4500mm×1100mm×1700mm (L*W*H) |
Weight | 2200kg |
