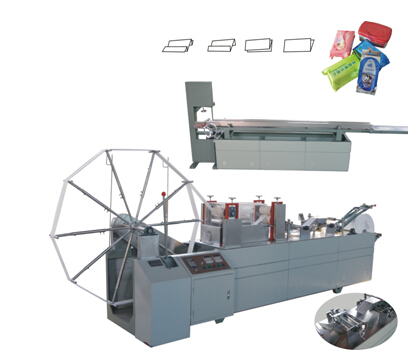

JY-C functional wet wipes folding & wetting & cutting machine
Detailed：
CHARACTERISTICS:
1.The device can produce spunlace nonwoven, hot cloth nonwoven ,needle cloth nonnwoven fabrics .
2. The device has double infrared counter, with a wide belt synchronous conveying device, with synchronous increase force device, with rail Park knife cutting device, equipped with imported band saw cutting.
3. The device uses sealing plate and spray painting. The main parts of the machine all use stainless steel material in compliance with state sanitary standard.
4. Production process: from raw material by folding, humidification, dry, count, rewinding, garden knife cutting, special conveyor cutting machine into a finished.
5. The device has low material consumption, strong practicability and
can transform a plurality of folding method. Specifications can be adjusted arbitrarily, neatly folded, high yield .
Equipment Model | JY-C |
Producing Speed | 500-800pcs/min |
Rated voltage | 380V |
rated frequency | 50Hz |
Total power | 4.5KW |
Dimensions | engine :4.5m*1m*1.7m auxiliary:5.3m*0.8m*1.7m |
Weight (N.W) | 2900KG |
